E45CNC Specs.

CAPACITIES:
          Max Tool Diameter:                                                      0.750"        19.05 mm
          Min Tool Diameter:                                                       0.030"        0.76 mm
          Max Length of Grind:                                                    3.0"            76.2 mm
          Max Overall Length of Tool:                                          8.0"            304.8 mm


WHEELHEAD AXES:
         Y Slide                                            9.0" (228.6 mm), repeatability 0.0002"
          C Rotary (pneumatic)                             0 to 60º left or Right


TOOLHEAD AXES:
          X Slide                                                  15" (381 mm), repeatability 0.0002"
          Z Slide                                                  7.0" (177.0 mm), repeatability 0.0002"
          A Rotary                                               (Work Spindle) free rotation, resolution 0.005º

FEEDRATES:
          All Linear Axes                                     0-200 IPM
          Rotary A Axis                                150 RPM
          Rotary C Axis                                       Pneumatic


WHEELHEAD:
          Wheel Spindle RPM                             0-6000 RPM
          Wheel Diameters                                  4"-6"
          Spindle HP                                           5 HP (10 HP optional)


CONTROL:
          Intel Pentium controlled 6-axis CNC controller.
          Digital AC servos drive all linear axes.
          Excalibur Conversational tool programs, written in-house by Excalibur.
          Optional programs available at no extra charge; Stepdrills,
          Reamers, Routers, Tapered Mills.


DIMENSIONS:
          Weight                                                2300 lbs.             1.15 tons
          Floor Area, Machine
          Controls and coolant                           65" X 60"            1.65 m X 1.52 m


EXCALIBUR TRAINING:
         40 hours of personalized training by our experts at our plant.
          Option:  Training at your plant.


WARRANTY:
          1 year or 2000 hours on parts and labor.  Service by Excalibur
          or local agent.

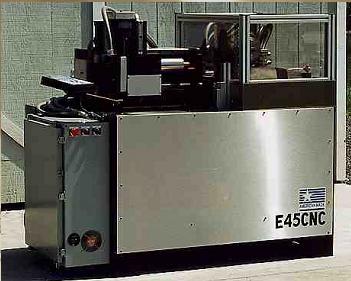

E45CNC
The Solution For:
  • Standard end mills in one clamping.
  • Diamond cut routers in one clamping.
  • Straight and tapered burrs.
  • Double-End end mills
  • High quality "specials" to 3/4"
  • A "dedicated" manufacturing center
